AI Server

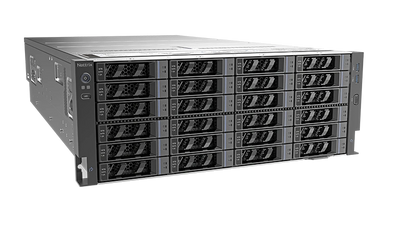

X640 G50 is a high-end 4U rack-mount server based on the 4th/5th generation Intel® Xeon® Scalable processor. It can be configured with up to 10 double-width, full-height, full-length professional GPU AI accelerator cards. It meets the requirements of ultra-high-density AI computing applications. It is suitable for large-scale cluster deployment.

Form

4U rack server

Processor

Supports 2 4th/5th Generation Intel® Xeon® Scalable processors, TDP 350W

Memory

32 DDR5 memory slots, up to 5600MHz, supports multiple protection modes such as memory ECC, memory mirroring, and memory hot standby

Storage controller

Supports multiple storage solutions such as pass-through, RAID0, 1, 10, 5, 50, 6, and 60

When configuring the RAID controller, it can support Cache supercapacitor protection, provide RAID level migration, disk roaming, self-diagnosis, Web remote settings and other functions, and support RAID card secure startup

Local storage

Front: supports up to 24 3.5/2.5-inch hard drives, supports up to 16 NVMe, supports hot swap

Built-in: up to 2 M.2, 1 onboard EMMC chip

Network interface

Network card: 1 OCP3.0, with NCSI function

OCP3.0 optional 2*1GE, 2*10GE, 2*25GE, 2*100GE, 2*200GE and other interfaces

PCI-E expansion

Up to 12 PCIe 5.0 expansion slots can be configured

Up to 10 double-width GPUs can be supported

Other interfaces

Rear of chassis: 1 RJ-45 management interface, 2 USB 3.0 interfaces, 1 VGA interface

Front of chassis: 2 USB3.0+VGA can be optionally configured

Power supply

Optional 2700W CRPS high-efficiency platinum hot-swappable power supply, supports 2+2 redundancy, voltage range 100-240Vac

Fan module

8 hot-swappable fan modules, maximum support for fan N+1 redundancy

Management function

Integrated BMC chip, providing 1 1Gbps RJ45 management port, supports Redfish, SNMP, IPMI2.0 and other standard interfaces; remote management interface based on IKVM/HTML5, provides comprehensive fault diagnosis, automated operation and maintenance, remote management functions, and supports dual flash redundant backup. BIOS supports Chinese interface.

Operating system

Microsoft Windows Server, RedHat Enterprise Linux, SUSE Linux Enterprise Server, CentOS, Ubuntu, Vmware EXSi, etc.

Operating temperature

5 ℃ ~ 35 ℃
